• NM-NM jumper cable

1/2″ Jumper Cable, N-Type male/ N-Type male

Please do not hesitate to contact us if you require any further information

Foreign Commercial Manager : +989125708854

1/2″ Jumper Cable, N-Type male/ N-Type male is commonly used for the connection of the RF cable lines with the antenna or with the radios. Cable and connectors have been soldered together in the production operation. Security of the joint and their concentric is guaranteed by a tight plastic cover. this flexible jumper designed, manufactured and/or distributed under this quality management system (ISO9001 & ISO14001). Quality of the product is tested according to IEC and MIL Standards.

• High quality and excellent performances
• Low attenuation and VSWR
• Strong corrosion-resistant
1/2″ super flexible coaxial cable (length of cable depending on customer request )
• Compliant with MIL, IEC and RoHS

Materials Specifications
Cable 1/2″  Super Flexible
Jumper Type
Factory-Fit (Standard)
Length, m
3m, Based on customer requirements
Impedance
50 ± 1 Ω

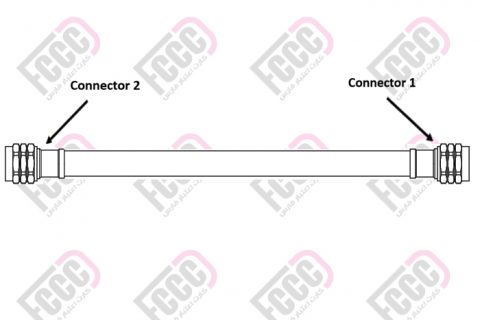

Connector A N male/Straight
Connector B N male/Straight
Intermodulation, 3rd Order, dBc ≤ -155
Insulation Resistance MΩ
 ≥ 100000
DC Breakdown Voltage (4kV,A.C.,1min) No Breakdown or Flashover
VSWR
≤1.06 @ 800-1000 MHz
≤1.08 @ 1700-2200 MHz
≤1.08 @ 2200-2400 MHz
≤1.10 @ 2400-2700 MHz
Attenuation dB ≤0.42  @ 800 MHz
≤0.45 @ 900 MHz
≤0.66 @ 1800 MHz
≤0.70 @ 2000 MHz
≤0.73 @ 2300 MHz
≤0.76 @ 2500 MHz
≤0.85 @ 2700 MHz
Minimum Bending Radius, mm
25
Degree of protection
IEC 60529, IP68
High Temperature Test
No Abnormality
Low Temperature Test
No Abnormality



Download Catalog
