Feeder Cable 1/2 RF SCF

Please do not hesitate to contact us if you require any further information

Foreign Commercial Manager : +989125708854

SKU: FC-Feeder-cable-Hansen-SCF-1/2 Categories: , ,

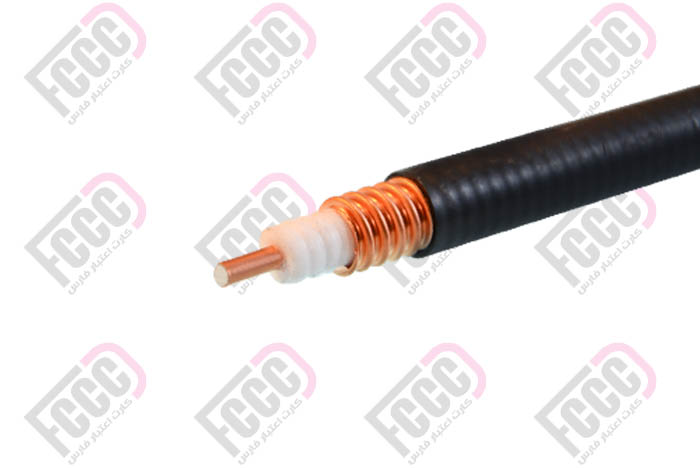

Hansen 1/2″ SCF feeder cable is a coaxial cable with high flexibility and its outer conductor made from Helically corrugated copper and also its inner conductor is a copper clad aluminum wire. Hansen feeder cable impedance is 50 ohms and mainly used for the connection of transmitter, receiver and antenna and have wide applications in antenna feeder systems and also connection between wireless communication equipment or other low loss and VSWR signal transmission at high frequency.
Applications :
• OEM jumpers
• Main feed transitions to equipment
• GPS lines

• High quality and excellent performances
• Low attenuation and VSWR
• Complete Shielding for minimizing system interference
• Small coefficient of temperature
• effective moisture-proofing
• High Power Rating





PART No. TYPE No. Description
3110501
3110502
RF5012S
RF5012SZ
Standard cable
Fire retardant cable
Construction
Copper clad aluminum wire
3.55±0.04
Inner
Conductor
Inner Conductor
Physically foamed PE
9.20±0.20
Material
Diameter, mm
Insulation
Helically corrugated copper
12.00±0.20
Material
Diameter, mm
Outer Conductor
PE or fire retardant PE
13.60±0.20
Material
Diameter, mm
Jacket
Mechanical properties
25
30
200
Single
Repeated
Moving
Bending radius , mm
800 Pulling strength, N
1.9 Crush resistance, kg/mm
Store -70~+85
Installation -40~+60
Operation -55~+85
Store -30~+80
Installation -25~+60
Operation -30~+80
PE jacket

Fire retardant
PE jacket

Recommend
temperature , °C
Electrical properties
50±1 Impedance,Ω
82 Capacitance, PF/m
0.205 Inductance,μH/m
81 Propagation velocity, %
2.5 DC breakdown voltage, kV
>5×103 Insulation resistance, MΩ•km
15.6 Peak power, kW
>>120 Screening attenuation, dB
10.2 Cut-off frequency, GHz
Attenuation and average power
Power rate
@20°C,kW
Nom. attenuation
@20°C,dB/100m
Frequency
MHz
10.1 1.04 10
3.08 3.41 100
1.38 7.59 450
1.158 9.58 690
1.01 10.40 800
0.943 11.20 900
0.889 11.80 1000
0.634 16.60 1800
0.597 17.60 2000
0.566 18.61 2200
0.539 19.59 2400
0.529 20.07 2500
0.518 20.55 2600
0.507 21.02 2700
0.469 22.40 3000
VSWR
≤1.15 820~960 MHz
≤1.15 1700~2200 MHz
≤1.15 2300~2400 MHz
≤1.15 2500~2700 MHz
Standards
Compliant 2011/65/EU
