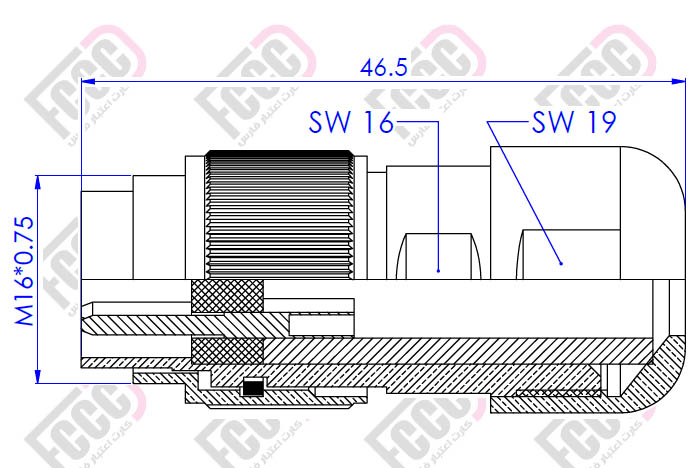

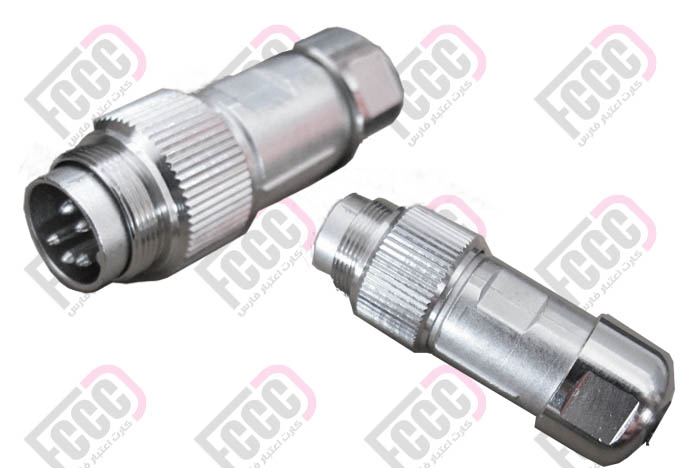

8P AISG Male Connector
8P AISG Male Connector is manufactured according to the AISG Standard (AISG C 485) typically used for AISG outdoor applications. The Antenna Interface Standards Group (AISG) published this AISG standard to describe and define the AISG connector (based on IEC 60130-9).
AISG/RET connectors and cable assemblies for wireless infrastructure and RF telecom infrastructures with RET (Remote Electrical Tilt) components.
Main applications AISG Male connectors are industrial controls, data processing, instrumentation, medical devices, feed telecommunication network and equipment, plus outdoor and marine application.
Features & Applications:
- Conform to IEC 61076-2-106 Standard
- Torque screwdriver usable
- For indoor and outdoor use
- Very high quality
- Mechanical operation: 500 mating cycles.
- IP67 protection

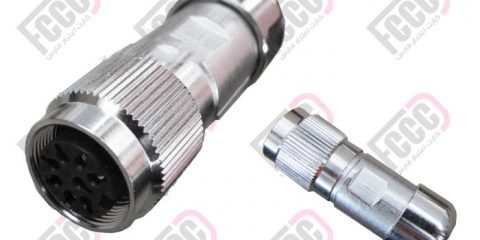

- Available in male or female types
- The connector should be tightened by hand or by special torque scredriver
- Compatible with industry cables from Andrew, Kathrein, Ericsson, Huawei, RFS, and many others
- Compliant RoHS
| Electrical and mechanical specification | |
| Item | Data |
| Product name | 8P AISG Male |
| Connector Description | 8 Pins Straight Male Connector for AISG RET Control Cable |
| Material and Plating | |
| Center contact | Phosphor Branze -Silver plated |
| Body | Brass Plated Tri-metal |
| Insulator | PTFE |
| Electrical Characteristics | |
| Contact resistance | 5 mΩ(Max) |
| Rated voltage | 300V |
| Rated current | 4 A (power supply) (at 50 °C air temperature) |
| Working Temperature Range | -40 °C~+80 °C |
| Mating cycles | ≥500 times |
| Protection class | IP 67 |
| Standards | IEC 61076-2-106 |
