RG214 Jumper
Please do not hesitate to contact us if you require any further information
Foreign Commercial Manager : +989125708854

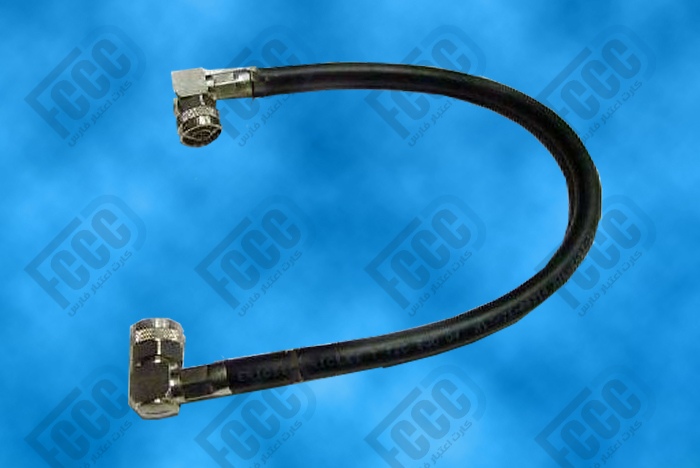

RG214 jumper made from rg214 coaxial cable and RF connectors. ugated copper and also its inner conductor is a copper-clad aluminum wire. Specific structure of the cable leads to higher conductivity and flexibility, better performance and lower attenuation compared to feeder cables (Superflex scf or lcf). Impedance of this jumper is 50 ohms and it is used for high-frequency signal transmission and is Useful as a connection from your RF source ( transmitter ) to a load or watt meter ( typically a Bird 43 ) and as a coaxial cable jumper from wattmeters to 50 ohm load or antenna.
Applications :
• GPS
• CATV
• LAN/WAN.
• High quality and excellent performances
• Low attenuation and low loss and low VSWR
• Excellent electrical conductivity
• High operating voltage
• operating frequency to 11 GHz
• Resistant to flames, sparks & Flame propagation
• Flexible
• Resistant to aging
• High dimensional stability
• Compliance with military (MIL-C-17) and international standards (IEC, etc)
| General specifications | ||
| Cable | RG-214 | |
| Connector | N male-Right Angle | |
| Impedance | 50 ohms | |
| Frequency Range | DC ~ 11 GHz | |
| VSWR | ≤1.15 | |
|
Cable specificationh |
||
|
Construction |
||
| Material | Diameter, mm | |
| Inner Conductor | Stranded silver-coated copper wire 7×0.75 mm |
2.25±0.02 |
| Insulation | PE | 7.24±0.17 |
| Outer Conductor | Silver-coated copper wire = 1st shield Nominal coverage of 1st shield=95.7 %Silver-coated copper wire = 2st shield Nominal coverage of 2st shield=98.0 % |
9.11 (Nom.) |
| Jacket | PVC | 10.80±0.178 |
| Mechanical specification | ||
| Operating temperature range | -40ºC to +85 ºC | |
| Single Bending Radius, in | 6 in | |
| Electrical specification | ||
| Characteristic impedance | 50 Ω | |
| Maximum capacitance |
32.2 Pf per foot (105.6 Pf per m) | |
| Inductance (µH) | 0.077 | |
| Nominal propagation velocity | 65.9 % | |
| Maximum continuous working voltage |
3,700 rms | |
| Max.Operating Frequence, GHz | 12.4 | |
| Attenuation and rating power | ||
| FrequencyMHz | Typical Attenuation
@20ºC,dB/100m |
|
| 1 | 0.17 | |
| 10 | 0.55 | |
| 50 | 1.3 | |
| 100 | 1.9 | |
| 200 | 2.7 | |
| 400 | 4.1 | |
| 700 | 6.5 | |
| 900 | 7.6 | |
| 1000 | 8.0 | |
| 4000 | 20.0 | |
| Connector specification | ||
| Gender | Male | |
| Termination Method | Crimp, Solder | |
| Body Orientation | Right Angle | |
| Impedance | 50Ω | |
| Operating Frequency Range | DC-11GHz | |
| Contact Material | Copper Zinc Alloy | |
