FCCC 1/2-7/16 Right Angle Male Connector

Please do not hesitate to contact us if you require any further information

Foreign Commercial Manager : +989125708854

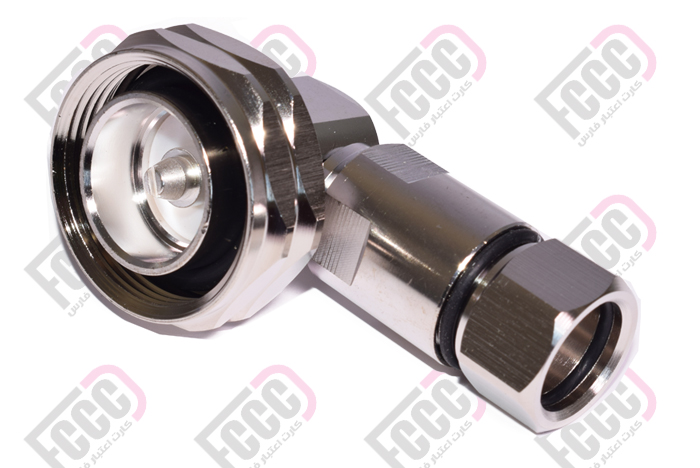

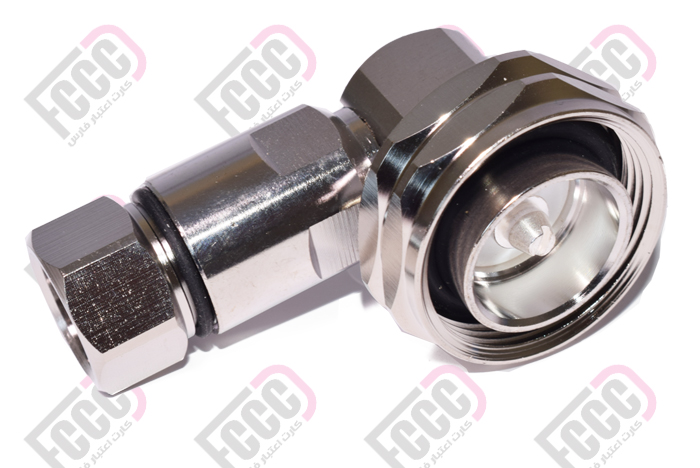

The FCCC 1/2-7/16 right angle male connector is series 7/16 RF coaxial connector, characteristic impedance is 50Ω. The crimp RF coaxial provides superior performance for both return loss and intermodulation distortion.
This 1/2-7/16 male crimp connector is connected to 1/2″ superflexible feeder cable and are ideal for those applications where vibration resistance and environmental protection is important, such as radio base stations and broadcast communication applications because has features such as low RL, low IMD, high power capacity, low VSWR, and and air tightness.

• Very robust, extremely stable and with waterproof specifications

FCCC 1/2-7/16 Right Angle Male Connector dimensions

• Low IMD and low VSWR provides improved system performance

• Excellent mechanical and environmental
properties
• IP67 protection
• Excellent electrical conductivity
• Compliant with IEC, MIL-STD, RoHS, and etc

Graphics for reference only (mm)

FCCC 1/2-7/16 Right Angle Male Connector dimensions
Technical Specification
Materials Specifications
Brass plating with Tri-metal Housing
PTFE Insulator
Brass / Phosphor bronze plating with Silver Center Conductor
Brass Other Metal Parts
Electrical Specifications
50 Impedance, Ω
DC-3 Frequency Range, GHz
≤-155 3rd Order IMD, dBc
≤884 RF Operating Voltage, Vrms
2500 DC Test Voltage, V
≤0.40 Inner Contact Resistance, mΩ
≤1.00 Outer Contact Resistance, mΩ
≥5000 Insulation Resistance, MΩ
≤10.00 Peak Power, kW
≤1.06 @0~1.0GHz
≤1.10 @1.0~2.7GHz
≤1.15 @2.7~3.7GHz
VSWR
≤0.10 Insert Loss, dB
Mechanical and Environmental Characteristics
500 Durability
890 Connector Retention Tensile Force, N
5.42 Connector Retention Torque, N.M
-40~+85 Operating Temperature, C
-65~+125 Storage Temperature, C
IP67 Waterproof
